ClearBOX 314

Sold Out

ClearBOX 314 delivers Smart Server Technology at an affordable price. This dual core, entry-level model is designed to scale and deliver a wide variety of IT functions for small office environments. Designed as a networking appliance, it's broad functionality can include all-in-one server functions for small offices delivering up to 500GB of drive capacity and 75+ IT Functions.

Summary:

  • ClearOS 7, Business Silver Subscription (1/yr)
  • Network & Threat Protection for Up to 50 users
  • Intended for Small Office Environments

ClearBOX 314 | Overview

ClearBOX 314 delivers a never before seen turn-key experience, enabling one server to perform 75+ IT functions.

These servers are built to run (and arrive pre-installed and pre-tested with) ClearOS 7, Business Edition. ClearBOX is managed from any browser from the cloud-managed Webconfig console. No longer are servers managed via text files and command lines.

  • Arrives Turn-Key, Ready To Configure
  • Enterprise Functionality. Small Business Price.
  • Local Storage: 500GB - (Expandable to 6TB upon request)
  • Up to 5 ISP Connections
  • Intended for Small Environments
  • All-in-One Server (up to 50 users)*
  • Mail Server (up to 100 users)*
  • Application Server (up to 50 users)*
  • Internet Security Appliance (up to 200 users)*
  • Content Filter & Proxy Server (up to 200 users)*
  • Network File Server (up to 400 users)*
  • Pre-Installed & Tested with ClearOS 7, Business Edition
  • Optional: 1, 3, & 5/yr ClearOS Business Subscriptions
  • Includes: 2/yr ClearBOX Hardware Warranty
  • Includes: 75+ IT Functions
  • Includes: 3rd Party & Business Exclusive Apps

ClearBOX 314 | Features

Cloud Apps

  • Dropbox®
  • Google Drive® Sync (coming)
  • Microsoft Office365® Connector (coming)
  • Dynamic DNS
  • Dynamic VPN
  • Remote Security Audit
  • Remote Data Backup
  • Remote System Monitor
  • Google Apps®, Accounts Sync
  • Antimalware Signatures
  • Antispam Signatures
  • Content Filter Blacklists
  • IDS Signatures

Network Apps

  • Bandwidth & QoS Manager
  • 1-to-1 NAT Firewall
  • Custom Firewall
  • DMZ Firewall
  • Egress Firewall
  • Incoming Firewall
  • Port Forwarding
  • Network Map
  • DHCP Server
  • DNS Server
  • Multicast DNS Server
  • NTP Server
  • RADIUS Server
  • SSH Server
  • UPnP
  • OpenVPN
  • ibVPN
  • PPTP Server
  • IPsec VPN
  • IP Settings
  • Multi-WAN
  • Upstream Proxy

Gateway Apps

  • Gateway Antiphising
  • Gateway Antivirus
  • Kaspersky® Antimalware
  • Content Filter Engine
  • DNSThingy
  • Web Access Control
  • Web Proxy Server
  • Web Proxy Auto Detection
  • Intrusion Detection System
  • Intrusion Prevention System

Server Apps

  • MariaDB Database Server
  • Directory Server
  • Microsoft Active Directory® Connector
  • Google Apps® Connector (coming)
  • Antimalware File Scanner
  • FTP Server
  • Flexshare
  • ownCloud
  • Photo Organizer
  • Plex Media Server
  • Serviio Media Server
  • Windows Networking (Samba)
  • Advanced Print Server
  • Greylisting
  • IMAP &amp POP Server
  • Mail Antispam
  • Mail Antivirus
  • Mail Archive
  • Mail Retrieval
  • Kaspersky® Mail Antimlware
  • Roundcube Webmail
  • SMTP Server
  • Zarafa® Collaboration (exchange)
  • Web Server

System Apps

  • Master / Slave Synchronization
  • Administrators
  • Groups
  • Account Manager
  • Account Import
  • Password Policies
  • Users
  • User Certificates
  • User Profiles
  • Software RAID Manager
  • Storage Manager
  • ClearOS Business Marketplace
  • ClearCARE Support

Reporting Apps

  • Bandwidth Viewer Report
  • Disk Usage Report
  • Log Viewer
  • Network Report
  • Network Visualizer
  • Process Viewer
  • Resource Report
  • SMART Monitor
  • Events &amp Notifications System (coming)
  • System Report
  • IDS Report (coming)
  • IDS Viewer (coming)
  • Content Filter Block Report (coming)
  • Antimalware Threat Report (coming)
  • SSH Access Log Report (coming)
  • Remote Audit Log Report (coming)
  • Penetration Testing Report (coming)

ClearBOX 314 | Flexibility

Standard Configuration

Benefit: Reliable networking, gateway, server platform connected to ClearSDN services

Application: Edge of the network all-in-one solution for medium & distributed enterprise environments.

Inline Content Filter & Proxy

Benefit: Provides low footprint content filtration for the entire network with the assurance that if a box fails or is powered down the traffic will still flow to the internet.

Application: Integration with existing firewall and gateway solutions.

Multi-Wan

Benefit: Provides redundant internet connectivity using multiple ISPs for balanced outbound and failover inbound service.

Application: Used in environments where internet connectivity is critical.

Mission Critical Gateway

Benefit: Provides failover gateway services in the event of hardware or software failure.

Application: Maintains all services for mission critical applications

High Availability Internet Application Server

Benefit: Provides failovers capability for internet based services such as SMTP, Web, and Database Applications.

Application: Mission critical applications need high availability protection from both platform and ISP failures.

Active-Active Network Services

Benefit: Provides high speed, load balanced active-active network with failover

Application: Used for high performance applications or data servers.

ClearBOX 314 | Subscriptions

DID YOU KNOW: Deploying ClearOS 7, Business Edition saves you hundreds or even thousands of dollars a year. The Business Edition bundles in many available paid apps and services, along with commercial third party add-ons which are more costly as al a carte options on other ClearOS editions.Check out the benefits of using ClearOS 7, Business below:



N/A
Not Available on ClearBOX

BRONZE
Business Subscription

  • Includes 75+ IT Functions (apps)
  • ClearOS 7, Business OS & App Access
  • Quality Tested Code & Updates Only
  • Master / Slave Directory Synchronization
  • Microsoft® A.D. Connector (up to 50 users)
Included
for 12 Months

SILVER
Business Subscription

  • BRONZE Subscription (plus the following)
  • + Commercial URLs for Content Filter
  • + Content Filter Blacklisting
  • + Commercial Signatures for IDS / IPS
  • + Commercial AV / AS Rules
  • + Remote System Configuration Backup
  • + Dynamically Managed VPN
Optional
Select this Option Above

GOLD
Business Subscription

  • SILVER Subscription (plus the following)
  • + ClearCARE Level I (Break/Fix Support)
  • + 8/5 Tech-Support (M-F 10-18:00 EST)
  • + Unlmited Tickets (Incl. 5 Hour Support Pack)
  • + Email Support
  • + Remote Login Support
  • + 1 Business Day Initial Support Response
Optional
Select this Option Above

PLATINUM
Business Subscription

  • GOLD Subscription (plus the following)
  • + ClearCARE Level II (Troubleshooting Support)
  • + 8/5 Tech-Support (24/7 *outages only)
  • + Unlmited Tickets (Incl. 10 Hour Support Pack)
  • + Phone Support
  • + 4 Hour Initial Support Response
  • + Remote System Monitor Alerts
  • + Remote File Security Audit Alerts

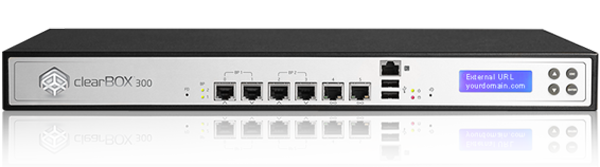

ClearBOX 314 | Components

ClearBOX is designed with the latest technology and features. Not only does it sport the usual LAN and WAN ports, but feast your eyes on the two bypass ports available to create fully redundant failover or load balanced systems. That kind of forward thinking is throughout the entire design. Check out the specs, you'll see what we mean!

  • ASystem Restore (In Development)
  • BBypass 2 LED Indicator
  • CBypass 1 LED Indicator
  • DG2 Bypass Segment 1 with 2 1Gb Ethernet Ports
  • EG2 Bypass Segment 2 with 2 1Gb Ethernet Ports
  • F2 x 1Gb Ethernet Ports
  • GDual USB 3.0 Ports
  • HRJ45 System Console connector
  • IHard Drive Active LED
  • JPower LED
  • KReset Button
  • L128x32 Graphic LCD Module
  • M4 button LCD Module Control
  • N250W Full-range ATX
  • OOn/Off Switch
  • PIntelligent Cooling System
  • QVGA Port - Intel® H61 PCH with DMI 5GT Chipset
  • ROne PCI-E x8 Expansion Slot Rear



ClearBOX 314 | Specifications

Form Factor

1u rack mountable or standalone appliance
Number of Processors 1
Processor Models

Intel® 4th Generation Core™ Processors:

  • Intel® Core i3-4350T Processor (4M Cache, 3.10GHz)
  • Intel® Core i5-4570S Processor (6M Cache, 3.60GHz) *
  • Intel® Core i7-4790S Processor (8M Cache, 4.00GHz) *
Memory

2 slots for DDR3  Long DIMMs, up to 16GB:

  • 2GB (DDR3 DIMM, 2 slots)
  • 4GB (DDR3 DIMM, 2 slots) *
  • 8GB (DDR3 DIMM, 2 slots) *
  • 16GB (DDR3 DIMM, 2 slots) *
Local Storage

Supports 1 x 3.5", 1 x 2.5" and 2 x 2.5" SSD & SATA Hard Disk Configurations:

  • 1 x 500GB 3.5" SATA Hard Disk
  • 1 x 1000GB 3.5"  SATA Hard Disk *
  • 1 x 2000GB 3.5" SATA Hard Disk *
  • 1 x 3000GB 3.5" SATA Hard Disk *
  • 1 x 4000GB 3.5" SATA Hard Disk *
  • 1 x 6000GB 3.5" SATA Hard Disk *
  • 1 x 240GB 2.5" SSD Hard Disk *
  • 1 x 480GB 2.5" SSD Hard Disk *
  • 1 x 960GB 2.5" SSD Hard Disk *
  • 2 x 240GB 2.5" SSD Hard Disk (RAID1 sw) *
  • 2 x 480GB 2.5" SSD Hard Disk (RAID1 sw) *
  • 2 x 960GB 2.5" SSD Hard Disk (RAID1 sw) *
  • 1 x 500GB 2.5" SATA Hard Disk *
  • 1 x 750GB 2.5" SATA Hard Disk *
  • 2 x 500GB 2.5" SATA Hard Disk *
  • 2 x 750GB 2.5" SATA Hard Disk *
RAID

Supports Software RAID 1 (dual drive configuration required)
Network Ports 6 GbE ports (dual hardware bypass segments)
Power Supply

1 x 250W 80Plus ATX

  • Operating Environment: Temp: 0 to 40°C (32 to 104°F) 20 to 80%RH
  • Storage Environment: Temp: -10 to 70°C (14 to 158°F) 10 to 90%RH @ 55°C

Dimensions (W x D x H) 438(W) x 292(D) x 44(H)mm 17.24”(W) x 11.5”(D) x 1.73”(H)
In the Box
  • 1u Rail Ears
  • Nema 5-15 (North America) Power Cable
  • Quick Start Guide
  • USB Software Key

 * Not offered in pre-configured models. Contact our team or a local partner to customize your smart server.

ClearBOX 314 | Compare

Comparison
ClearBOX Series
Intended Environment
  • Home Office
  • Small Office
  • Medium Office
  • Large Office
  • Distributed Environments
  • Data Center
Intended IT Functions
  • Mail Server
  • Application Server
  • Internet Security Appliance
  • Content Filter &amp Proxy Server
  • Network File Server
  • All-in-One Server
Intended User Load
  • Zarafa Mail Server
  • IMAP &amp POP Server
  • Application Server2
  • Internet Security Appliance
  • Content Filter &amp Proxy Server
  • Network File Server
  • All-in-One Server
Hardware Specifications
  • CPU
  • Memory
  • Disk
  • Power
  • Rack Mountable
  1. Environments =/ larger than 1000 users may require custom engineering support.
  2. Capacity depends on application requirements. For the purposes of this comparison, a LAMP stack with a web application is given.
  3. "Up to" refers to the maximum suggested user counts based on the maximum available spec on each appliance.
0
100
  • Up to 25
  • Up to 50
  • Up to 25
  • Up to 50
  • Up to 50
  • Up to 100
  • Up to 15
  • 1x Intel Atom®
  • Up to 4GB
  • 1x 2.5" SATA
  • 1x P/S
  • -

0
300
  • Up to 100
  • Up to 350
  • Up to 50
  • Up to 200
  • Up to 200
  • Up to 400
  • Up to 75
  • 1x Intel iSeries®
  • Up to 16GB
  • 2x 2.5" or 1x 3.5" SATA
  • 1x P/S
  • Yes

0
500
  • Up to 10001
  • Up to 1000
  • Up to 10000
  • Up to 100001
  • Up to 100001
  • Up to 200001
  • Up to 750
  • 2x Intel Xeon®
  • Up to 1024GB
  • 8x 2.5" or 4x 3.5" SAS
  • 2x Hot Swappable P/S
  • Yes

0
700
  • Up to 10001
  • Up to 3500
  • Up to 10000
  • Up to 100001
  • Up to 100001
  • Up to 200001
  • Up to 750
  • 2x Intel Xeon®
  • Up to 1024GB
  • 25x 2.5" or 12x 3.5" SAS
  • 2x Hot Swappable P/S
  • Yes


ClearBOX 314 | Documentation

User Guide Coming
Quick Start Guide Coming
Datasheet Coming
